7218 Rectangular Close End Fitting 14 x 18

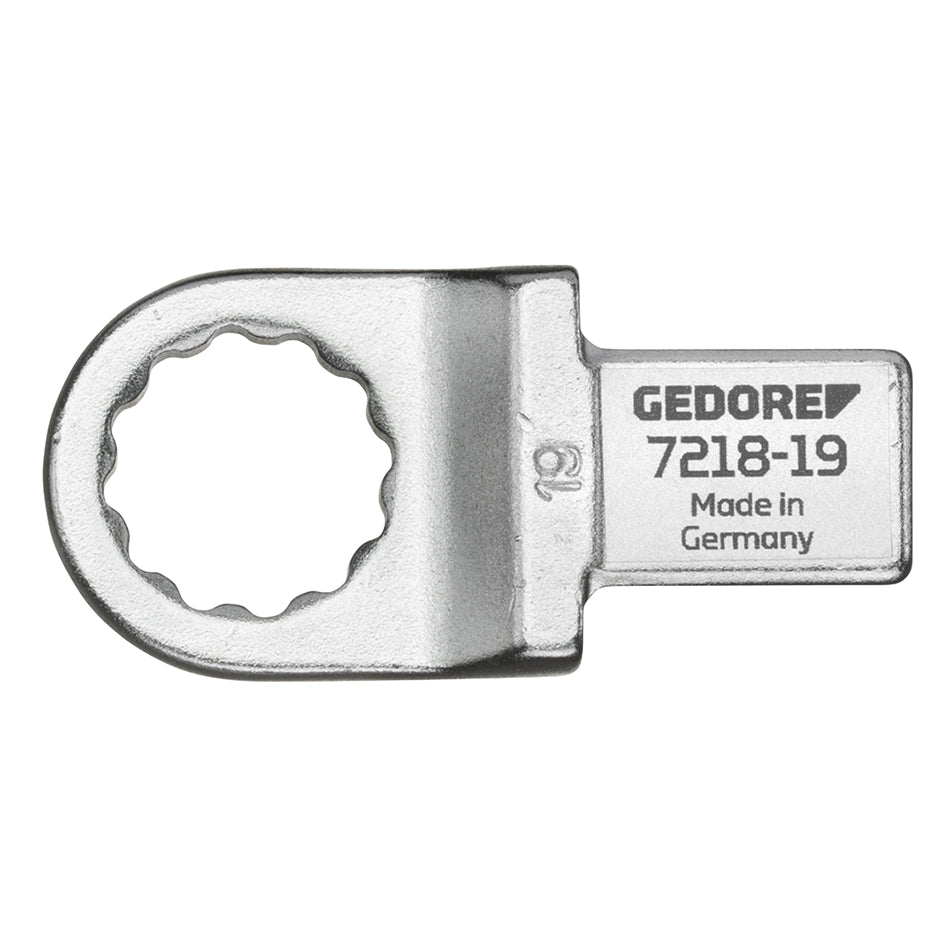

The 7218 Rectangular Ring End Fitting is a forged interchangeable fitting designed for use with GEDORE torque wrenches with a 14 x 18 mm rectangular connector. It features a closed ring design and is intended for solving difficult assembly problems.

Specifications:

Product item Spanner size Drive connector Head width Depth gauge
7218-13 13 mm 14 x 18 mm 21.5 mm 25 mm
7218-14 14 mm 14 x 18 mm 23 mm 25 mm
7218-15 15 mm 14 x 18 mm 24.2 mm 25 mm
7218-16 16 mm 14 x 18 mm 25.7 mm 25 mm
7218-17 17 mm 14 x 18 mm 27.2 mm 25 mm
7218-18 18 mm 14 x 18 mm 28.5 mm 25 mm
7218-19 19 mm 14 x 18 mm 30.5 mm 25 mm
7218-21 21 mm 14 x 18 mm -  25 mm
7218-22 22 mm 14 x 18 mm -  25 mm
7218-24 24 mm 14 x 18 mm - 25 mm
7218-27 27 mm 14 x 18 mm - 31 mm
7218-30 30 mm 14 x 18 mm - 31 mm
7218-32 32 mm 14 x 18 mm - 31 mm
