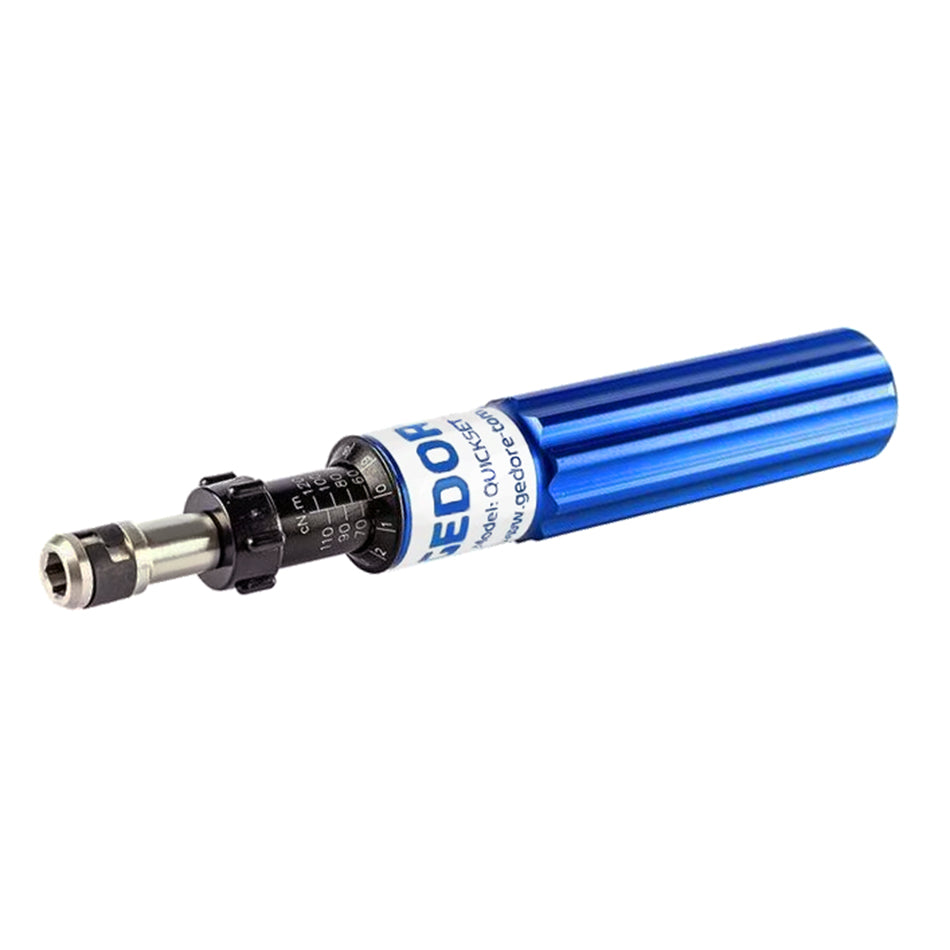

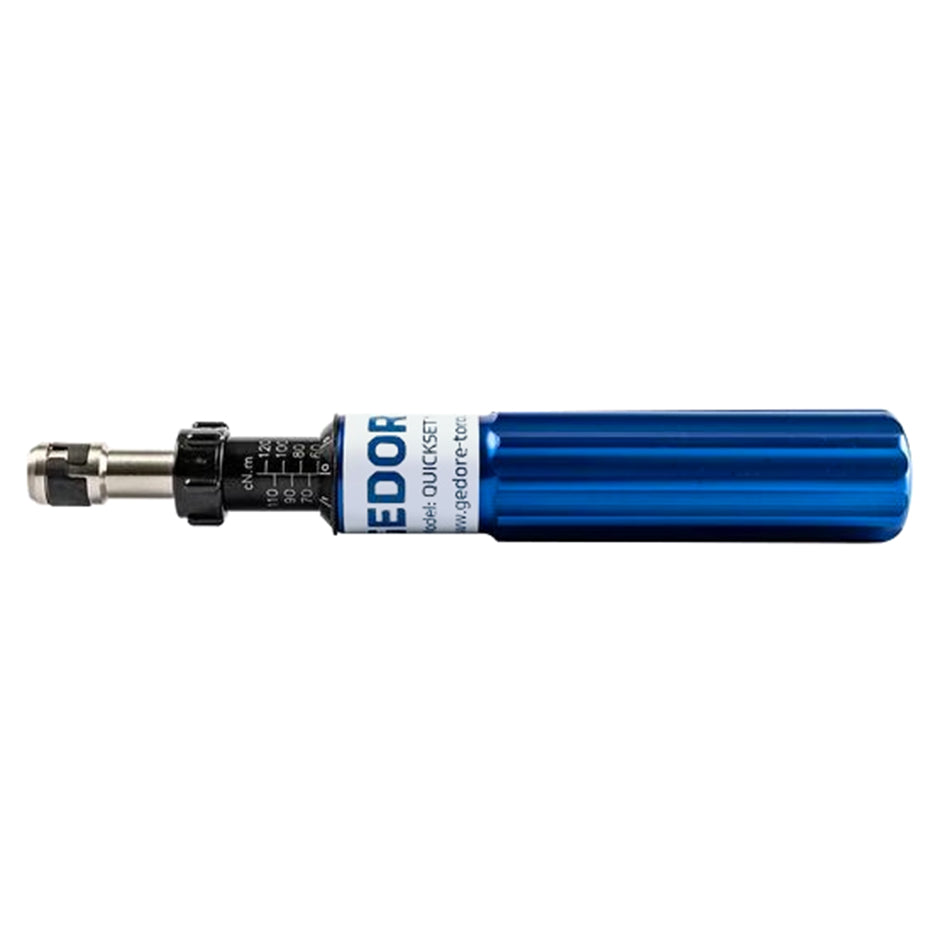

QS Torque Screwdriver Type S, Pre-Set 0.24-9Nm

The QS Type S torque screwdriver is designed for controlled screw tightening in serial production, electrical and electronic hardware, instrument making, industrial manufacturing and quality control. It features a 1/4" hexagon drive for 1/4" bits and a precision slip clutch for controlled tightening in both directions.

  • Controlled screw tightening from 0.24-9 Nm.
  • 1/4" hexagon drive for 1/4" bits according to DIN 3126-C 6.3.
  • Precision radial ball clutch and cam design for bi-directional tightening.
  • Precision mechanism slips noticeably when the preset value is reached.
  • Automatic resetting to the starting position.
  • Working accuracy of +/-6% of the set torque.
  • QS 6 and QS 9 models supplied with an additional sliding T-bar.
  • Certificate according to DIN EN ISO 6789-2:2017.

Specifications:

Product item Hexagon drive Torque range (N-m) Length
QSM/N FH BLUE 1/4"  0.24 - 1.2 169 mm
QS6 FH BLUE 1/4" 1.2 - 6 184 mm
QS9 FH BLUE 1/4" 4 - 9 184 mm
